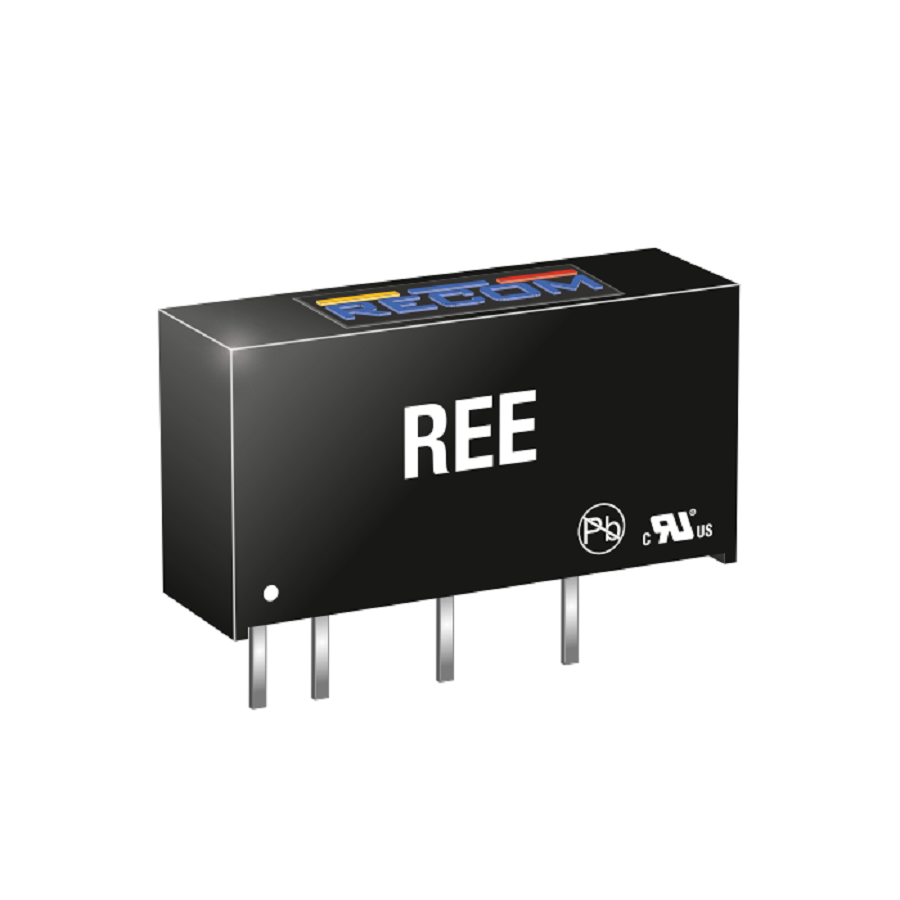

REE-0505S
Manufacturer:
Recom Power
Mfr.Part #:
REE-0505S
Datasheet:
Description:
DC to DC Converters SIP-6 Through Hole Nominal Input Voltage:5 V Min Input Voltage:4.5 V Max Input Voltage:5.5 V 76 %
| Parameter | Value |
|---|---|
| Length | 19.6 mm |
| Width | 6 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Power Rating | 1 W |
| Height | 10.2 mm |
| Packaging | Tube |
| Depth | 6 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 2.2 g |
| Min Input Voltage | 4.5 V |
| Output Current | 200 mA |
| Output Voltage | 5 V |
| Max Power Dissipation | 1 W |
| Max Output Current | 200 mA |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 1 |
| Isolation Voltage | 1 kV |
| Output Power | 1 W |
| Current - Output 1 | 200 mA |
| Efficiency | 76 % |
| Voltage - Output 1 | 5 V |
| Max Input Voltage (DC) | 5.5 V |
| Nominal Output Voltage | 5 V |
| Nominal Input Voltage | 5 V |
| Max Output Voltage | 5 V |
| Max Output Power | 1 W |
| Min Input Voltage (DC) | 4.5 V |
| Isolation | Isolated |
| Schedule B | 8504409580 |
| Output Current-Channel 1 | 200 mA |
| Output Voltage-Channel 1 | 5 V |
Stock: 671
Distributors
pcbx
pcbxUnit Price$1.95864
Ext.Price$1.95864
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.95864 | $1.95864 |
| 10 | $1.92787 | $19.27870 |
| 25 | $1.73978 | $43.49450 |
| 50 | $1.72389 | $86.19450 |
| 100 | $1.70815 | $170.81500 |
| 300 | $1.69552 | $508.65600 |
| 500 | $1.68298 | $841.49000 |
| 1000 | $1.67053 | $1670.53000 |
